SKU: NOBLP-TEL828131
Telwin Digital Dent Puller 5500 DUO
$2,825.00 Inc GST.

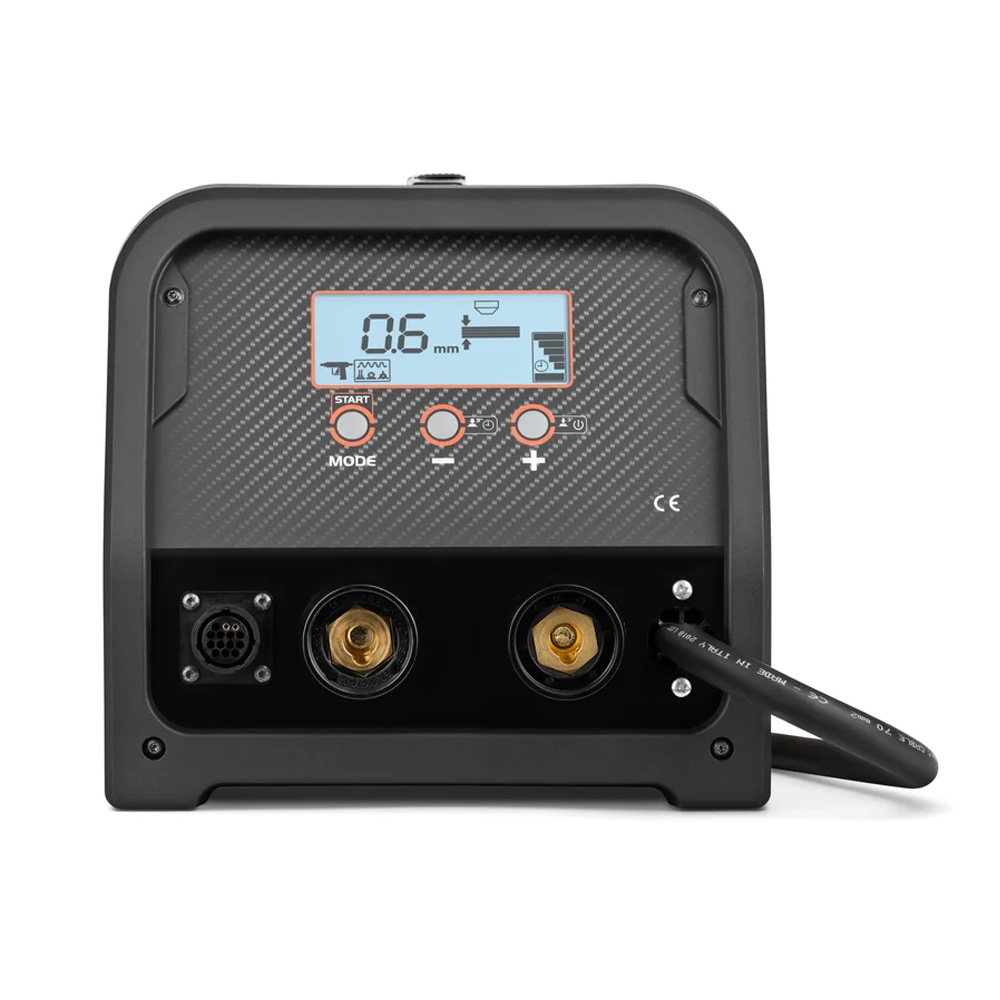

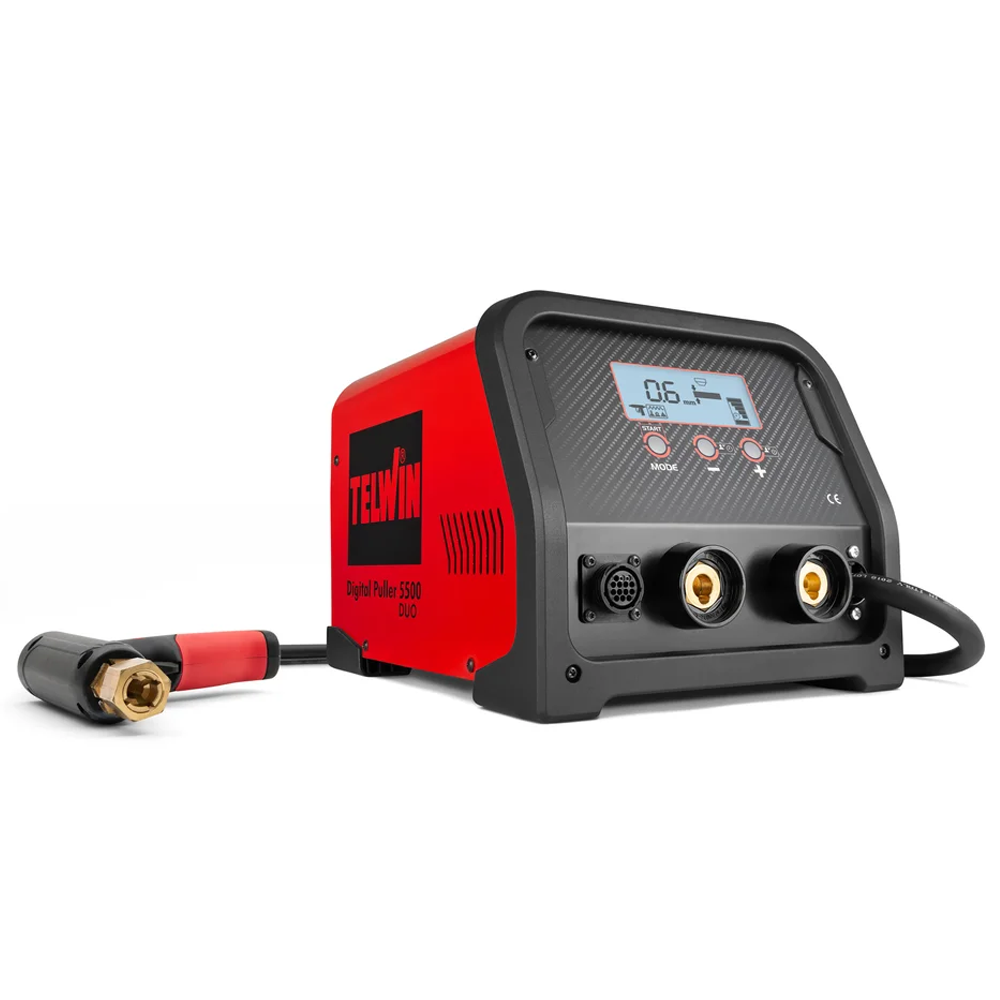

Telwin Digital Puller 5500 DUO
The Telwin Digital Puller 5500 DUO is a professional microprocessor-controlled dent pulling system designed for straightening and repairing steel body panels. Ideal for automotive body shops, it features a multifunction LCD display that automatically adjusts spot-welding parameters according to the selected tool.
The DUO system includes both automatic and manual guns, providing greater versatility for a wide range of panel repair and dent pulling applications.
Features:
- Microprocessor-controlled operation
- Digital multifunction LCD display
- Automatic parameter adjustment
- Automatic and manual dent pulling guns
- Designed for professional automotive body repair
- Operates from a standard 230V supply with 16A fuse

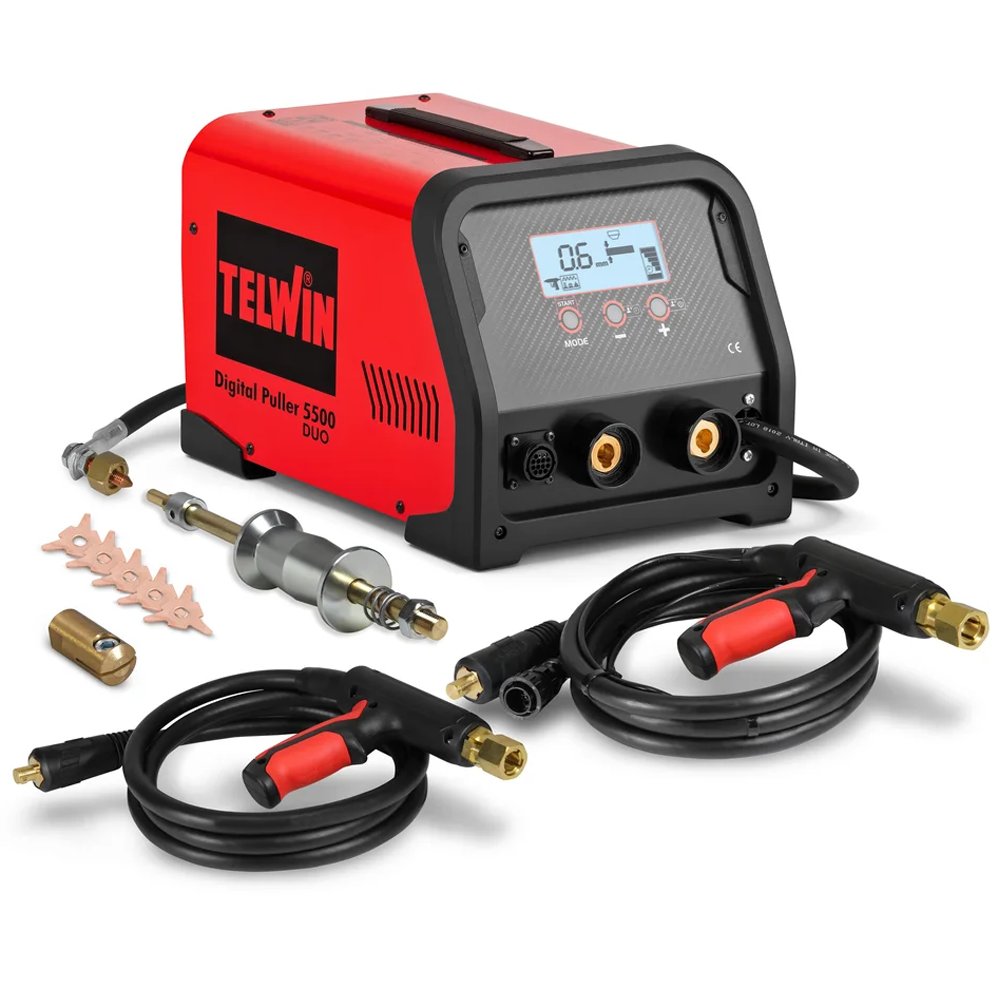

Supplied With:
- Automatic Gun
- Manual Gun
- Earth/Work Cable
- Extractor
- Spindle
- Pulling Stars
Specifications:
- Mains Voltage: 230 V, Single Phase
- Mains Frequency: 50 / 60 Hz
- Peak Spot-Welding Current: 3800 A
- RMS Spot-Welding Current: 2500 A
- Secondary No-Load Voltage: 5.6 V
- Maximum Absorbed Power: 10.5 kW
- Rated Power (X = 50%): 1.8 kW
- Mains Fuse: 16 A
- Power Factor (cos φ): 0.8
- Duty Cycle: 1.5%
- Insulation Class: H
- Protection Rating: IP22
- Dimensions: 390 x 260 x 225mm
- Weight: 24kg
- Telwin Product Code: 828131
